Masada Deck Machinery
Jiangsu Masada Heavy Industry (JMH) is a joint venture between Masada Ironwork (Japan) and Nantong Universal Machinery (China) in 2005. JMH is the sole licensee of Mitsubishi Heavy Industries Group in China to manufacture deck cranes, deck machinery, steering gear, hose handling crane pump. In 2020, JMH moved into its new facility with an area covering more than 245,000 square meters (almost 4 times the size of previous facilities).
Features of Our Deck Machinery
• Our main components are using international brands
• High Reliability
• Easy to Maintain
Windlass & Mooring Winch
For efficient, safe and reliable operation, Masada windlass and winches are designed and manufactured with the highest safety factor and quality control, and meet the expectation of the users.
Masada winches and their related components also meet the requirement of the offshore industry.

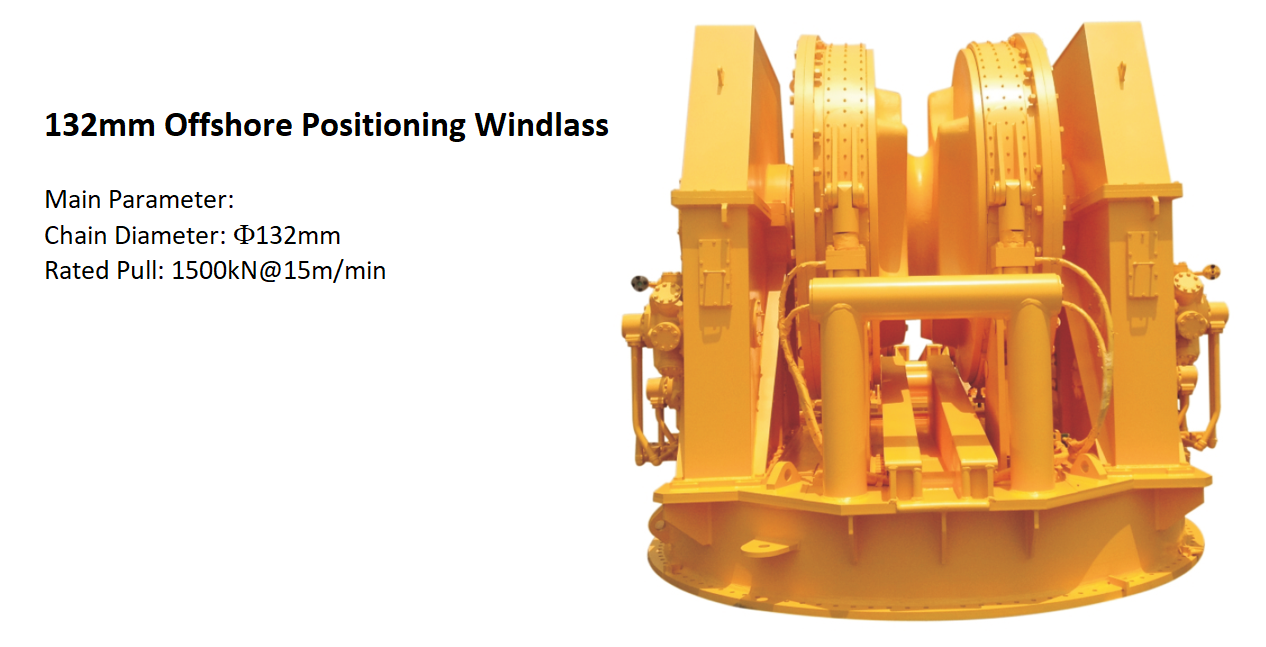

Specification for Hydraulic Windlass

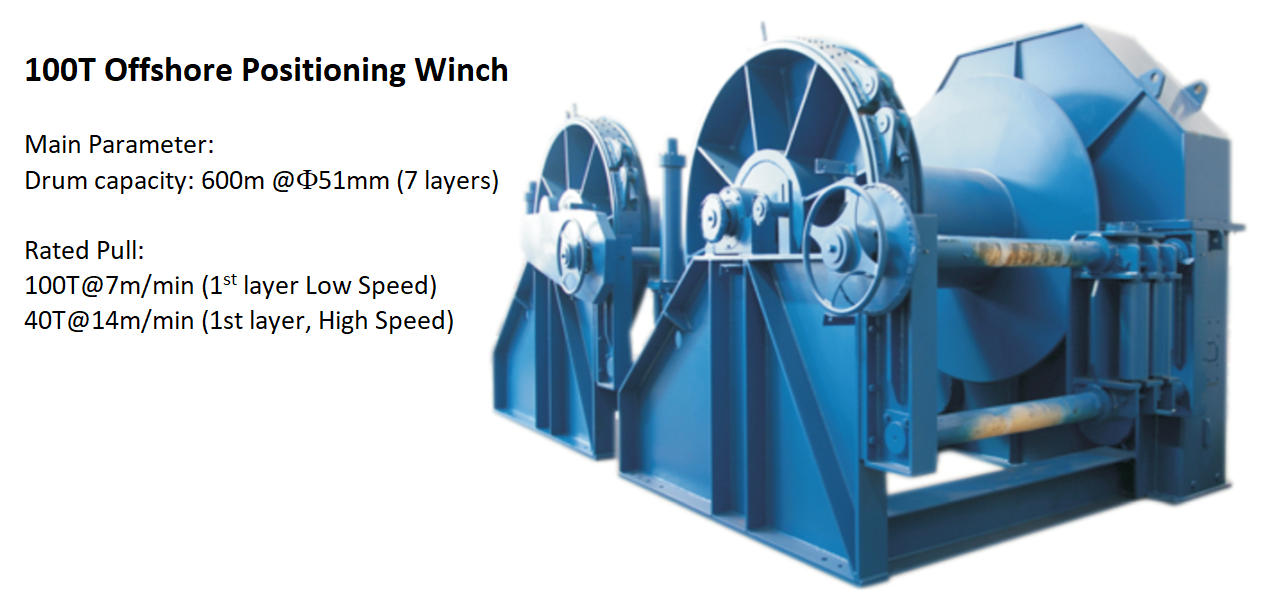

| Specification of Hydraulic Windlass | Chain Dia (mm) | Working Load (KN) | Weigh Achor Speed (m/min) | Towing Force (kN) | Towing Speed (m/min) | Motor Power (kW) |
|---|---|---|---|---|---|---|
| ∅19/20.5/22 | 19/20.5/22 | 15.3/17.9/20.6 | ≥9 | 15 | ≥12 | 7.5 |
| ∅24/26 | 24/26 | 24.5/28.7 | ≥9 | 20 | ≥12 | 11 |
| ∅28/30 | 28/30 | 33.3/38.3 | ≥9 | 25 | ≥12 | 15 |
| ∅32/34/36 | 32/34/36 | 43.5/49.1/55.1 | ≥9 | 30 | ≥12 | 22 |
| ∅38/40/42 | 38/40/42 | 61.4/68.0/75.0 | ≥9 | 50 | ≥12 | 30 |
| ∅44/46/48 | 44/46/48 | 82.3/89.9/97.9 | ≥9 | 60 | ≥12 | 37 |
| ∅50/52/54 | 50/52/54 | 106.3/114.9/123.9 | ≥9 | 60 | ≥15 | 37 |
| ∅56/58/60 | 56/58/60 | 133.3/143.0/153 | ≥9 | 80 | ≥15 | 40 |
| ∅62/64 | 62/64 | 163.4/174.1 | ≥9 | 100 | ≥15 | 47 |
| ∅66/68 | 66/68 | 185.1/196.5 | ≥9 | 120 | ≥15 | 55 |
| ∅70/73 | 70/73 | 208.3/226.5 | ≥9 | 147 | ≥15 | 60 |
| ∅76/78 | 76/78 | 245.5/258/6 | ≥9 | 147 | ≥15 | 70 |
| ∅81/84 | 81/84 | 311.7/335.2 | ≥9 | 167 | ≥15 | 90 |
| ∅87/90 | 87/90 | 359.5/384.8 | ≥9 | 200 | ≥15 | 102 |
| ∅92/95 | 92/95 | 402.2/428.7 | ≥9 | 200 | ≥15 | 115 |
| ∅97/102 | 97/102 | 446.9/494.2 | ≥9 | 250 | ≥15 | 130 |
| ∅105/107 | 105/107 | 523.7/543.8 | ≥9 | 250 | ≥15 | 145 |
| ∅111/114 | 111/114 | 585.2/617.3 | ≥9 | 250 | ≥15 | 160 |
| ∅117/122 | 117/122 | 650.2/707.0 | ≥9 | 250 | ≥15 | 187 |
| ∅132 | 132 | 827.64 | ≥9 | 300 | ≥15 | 250 |
| Specification of Hydraulic Winch | Rated Pull (kN) | Rated Speed (m/min) | Draum Capacity (m) | Motor Power (kW) |
| 10KN | 10 | ≥12 | ∅11x150 | 5.5 |
| 20KN | 20 | ≥12 | ∅15x150 | 11 |
| 40KN | 40 | ≥15 | ∅17.5x150 | 22 |
| 50KN | 50 | ≥15 | ∅20.5x150 | 30 |
| 75KN | 75 | ≥15 | ∅26x150 | 45 |
| 100KN | 100 | ≥12 | ∅30x200 | 45 |
| 160KN | 160 | ≥12 | ∅32x250 | 75 |
| 200KN | 200 | ≥9.6 | ∅41x250 | 75 |
| 250KN | 250 | ≥9.6 | ∅44.5x250 | 90 |
| 315KN | 315 | ≥7.8 | ∅52x250 | 90 |
| 400KN | 400 | ≥7.8 | ∅56x250 | 110 |
| 450KN | 450 | ≥6 | ∅56x250 | 110 |
| 500KN | 500 | ≥6 | ∅58x250 | 110 |
| 560KN | 560 | ≥6 | ∅64x250 | 132 |
| 600KN | 600 | ≥6 | ∅64x250 | 132 |
| 650KN | 650 | ≥5 | ∅70x250 | 132 |
| 1000KN | 1000 | ≥4 | ∅85x250 | 132 |
| 1200KN | 1200 | ≥4 | ∅95x250 | 160 |
| 1500KN | 1500 | ≥4 | ∅95x250 | 200 |
| 1800KN | 1800 | ≥4 | ∅95x250 | 250 |
| 2000KN | 2000 | ≥4 | ∅100x250 | 270 |
Towing winches

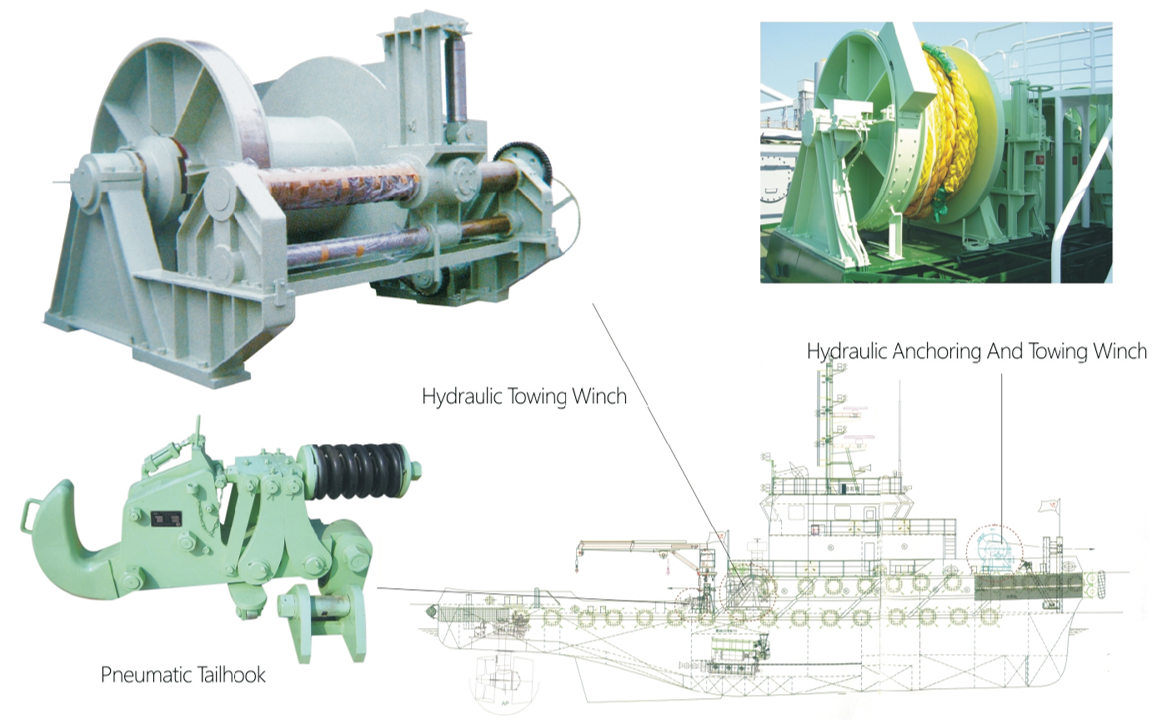

Masada Towing Winches are designed and built according to the specific requirement of the customer. Towing winches are commonly used on the tugboats and powered by hydraulic or electric drives.
| Type | Specification (Txm/min) | Motor for hydraulic Pump (kW) | Static Brake Force (Ton) | Rope Dia. (mm) |
| MOW-T30 | 1.5x13 | 18.5 | 30 | 80 |
| MOW-T40 | 2.0x13 | 22 | 40 | 85 |
| MOW-T50 | 2.5x13 | 30 | 50 | 90 |
| MOW-T60 | 2.5x13 | 30 | 60 | 100 |
| MOW-T70 | 3.0x13 | 30 | 70 | 100 |
| MOW-T80 | 3.5x13 | 37 | 80 | 110 |
| MOW-T90 | 4.0x13 | 37 | 90 | 110 |
| MOW-T100 | 4.0x13 | 37 | 100 | 110 |
| MOW-T120 | 5.0x13 | 37 | 120 | 110 |
| MOW-T150 | 6.0x13 | 45 | 150 | 130 |
| MOW-T180 | 6.0x13 | 45 | 150 | 140 |
| MOW-T200 | 6.0x13 | 45 | 200 | 160 |
Capstan
Masada Capstan use during vessel mooring operations on the quay are hydraulic driven. Masada Capstan can be customised or fitted with various options to meet the customer’s requirement.

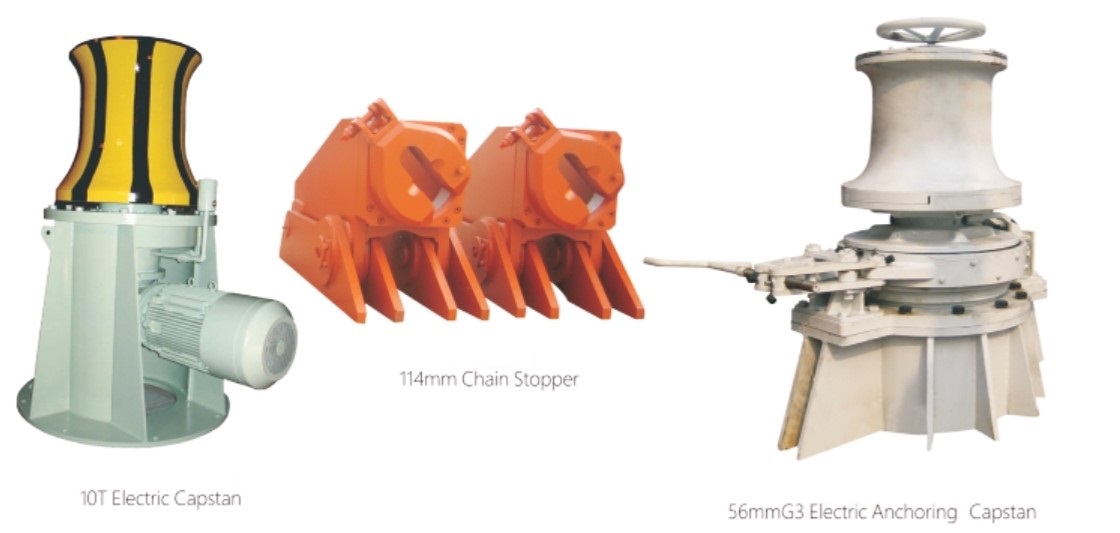

| Specification of Electric Hydraulic (Anchoring) and Mooring Capstan | Chain Diameter (mm) | Working Load (kN) | Woring Speed (m/min) | Mooring Load (kN) | Moorinf Speed (m/min) | Wire Dia. (mm) | Motor Power (kW) | |
| Electric | Hydraulic | |||||||
| Φ12.5/14 | 12.5/14 | 5.9/7.4 | ≥12 | 5 | ≥10 | Φ11 | 3/1.2 | 4 |
| Φ16/17.5 | 16/17.5 | 10.9/13.0 | ≥12 | 8 | ≥10 | Φ13 | 4.3/1.7 | 7.5 |
| Φ19/22 | 19/22 | 15.3/20.6 | ≥13 | 10 | ≥10 | Φ13 | 6/2.5 | 11 |
| Φ24/26 | 24/26 | 24.5/28.7 | ≥9 | 20 | ≥8.5 | Φ15 | 7.5/7.5/5 | 11 |
| Φ28 | 28 | 33.3 | ≥9 | 30 | ≥8.5 | Φ17.5 | 11/11/7.5 | 15 |
| Φ30/32 | 30/32 | 38.3/43.5 | ≥9 | 30 | ≥8.5 | Φ17.5 | 16/16/11 | 15 |
| Φ34/36 | 34/36 | 19.1/55.1 | ≥9 | 30 | ≥8.5 | Φ17.5 | 16/16/11 | 18.5 |
| Φ38/40 | 38/40 | 61.4/68.0 | ≥9 | 30 | ≥8.5 | Φ20.5 | 22/22/16 | 30 |
| Φ42/44 | 42/44 | 75/82.3 | ≥9 | 50 | ≥8 | Φ20.5 | 22/22/16 | 30 |
| Φ52 | 52 | 128.4 | ≥9 | 50 | ≥8 | Φ20.5 | 30 | 37 |
| Φ60 | 60 | 171 | ≥9 | 50 | ≥8 | Φ20.5 | 37 | 45 |
